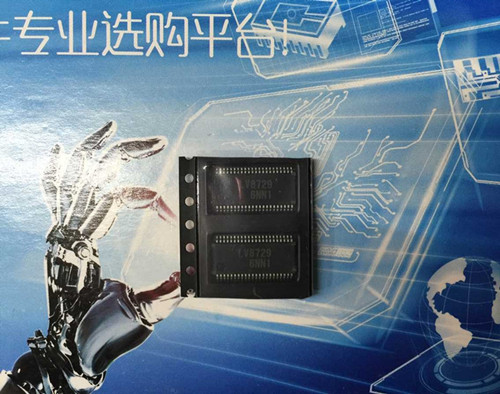

The new ON driver LV8729V-TLM-H
Date：2016/4/6 15:29:41 Click：3610
LV8729V PWM is the current micro control bipolar stepper motor driver. This driver can be done in eight ways from the whole step 1/128 step micro resolution, and can input simple drive through CLK.
Characteristic advantage
The output resistance (0.35 ohm; upper side: 0.3 ohm; upper and lower total: 0.65; large = 25 ~ C, IO = 1.8A)
low power consumption
2 phase, 1-2 phase, W1 phase, -2 phase, 2W1 4W1 phase, -2 phase, 8W1 - 2 phase, 16W1 - 2 phase, -2 32W1 phase excitation is optional.
Each step of the adjustment is available, low vibration, silent drive is possible
Over current protection circuit.
Current protection
Thermal shutdown circuit.
Thermal protection
Single channel PWM current control stepping motor driver.
BiCDMOS process IC.
Promote the excitation step, the only step signal input.
Can be controlled by reverse.
Input pull-down resistor
With the reset pin and enable pin
